ST-Z35 Stereo Tuner - RS-M206 Cassette Deck - SU-Z35 Integrated Amplifier AF3818A197

Technics

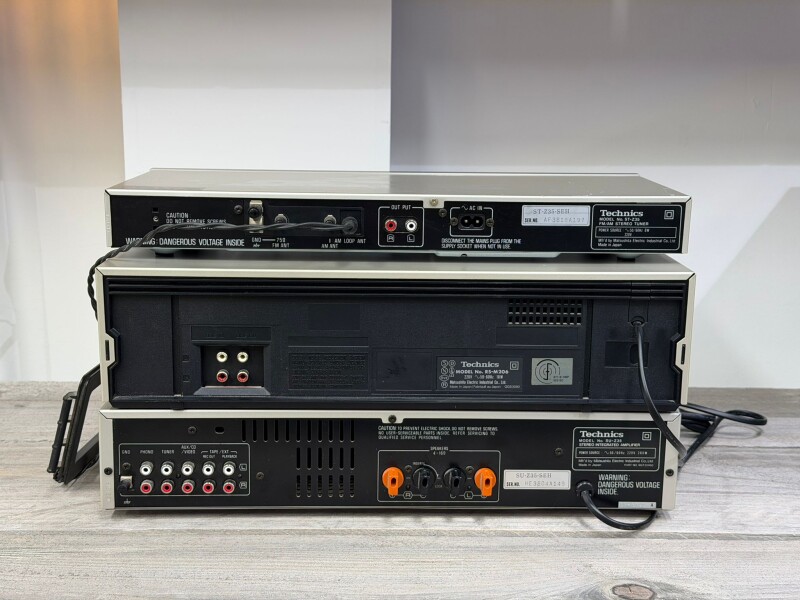

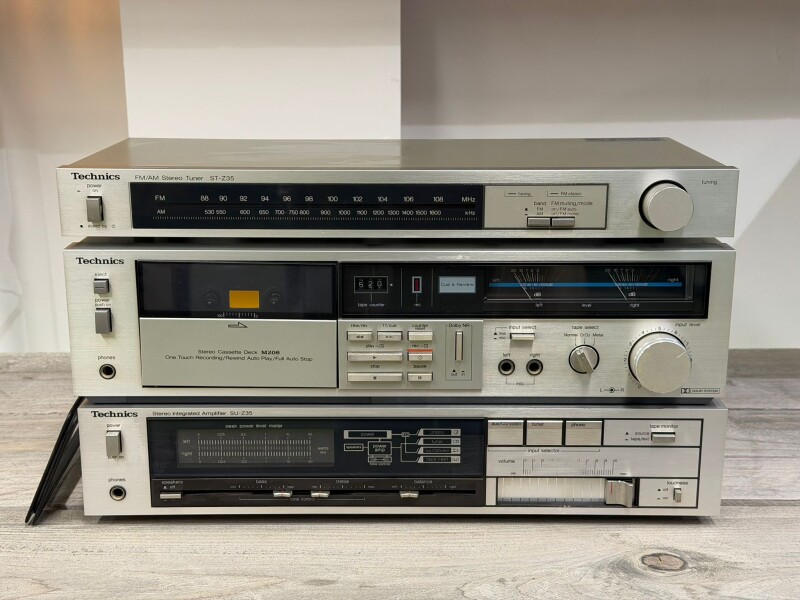

Technics Vintage Set

Specificaties:

ST-Z35 Stereo Tuner

Type: Mono/Stereo Tuner

Tuning Bands: FM, AM

Tuning Scale: Analogue

FM Tuning Range: 88 to 108 MHz

MW Tuning Range: 525 to 1605 kHz

Sensitivity: 0.9uV (FM), 20uV (MW)

Signal to Noise Ratio: 70dB (FM)

Distortion: 0.3% (FM)

Selectivity: 65dB (FM), 27dB (MW)

Frequency response: 20Hz to 15kHz (FM)

Output: 300mV

Dimensions: 2.2 inches

Year: 1983

RS-M206 Cassette Deck

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: electrical governor DC

Tape Type: type I, CrO2, Metal

Noise Reduction: B

Frequency Response: 20Hz to 17kHz  (Metal tape)

Signal to Noise Ratio: 66dB  (dolby B)

Wow and Flutter: 0.05%

Input: 60mV (line), 0.25mV (mic)

Output: 0.4V (line)

Dimensions: 430 x 109 x 233mm

Weight: 4kg

Finish:  Silver, Black

SU-Z35 Stereo Integrated Amplifier

Power output: 30 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 80kHz

Total harmonic distortion: 0.03%

Damping factor: 40

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 72dB (MM), 97dB (line)

Channel separation: 50dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 430 x 86 x 240mm

Weight: 4.6kg

Finish: Silver, Black
